Our Model 301 or 301A Cylindrical Marking Presses sometimes require special fixtures to hold odd shaped parts.  They may be multiple diameters, hex shapes or just long parts needing additional support.It may be a dedicated fixture for just one part.  Or it may have to be adjustable to fit a family of parts.  We have designed and manufactured hundreds of fixtures.   Some designs allow the fixture to move in and out. Others are stationary.  Some are very complicated due to the part design.  Others are very simple that require just a groove in the roller for clearance.  For hollow parts with thin walls, we have an arbor design, so that the part will not bend when marking.

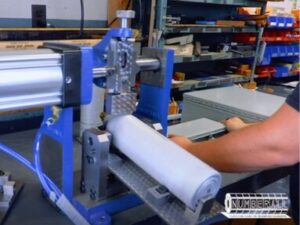

The pictures below show some the variations we have designed.
