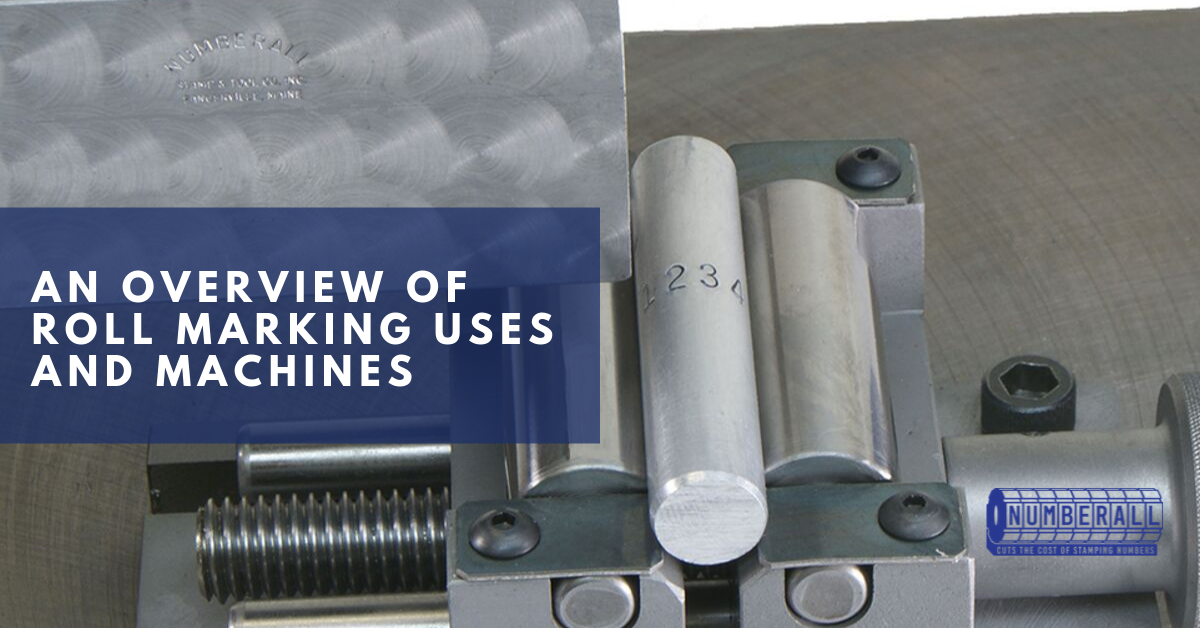

An Overview of Roll Marking Uses and Machines

High-Performance Roll Marking: Engineered for Precision and Industrial Durability

For over 90 years, Numberall Stamp and Tool Co. has defined the standard for industrial identification. Our roll marking solutions are engineered specifically for manufacturers who require deep, legible, and repeatable impressions on cylindrical or hollow workpieces.

While traditional flat-bed presses often struggle with uneven depth on curved surfaces, our roll marking technology utilizes a synchronized rotation method. This ensures that the marking pressure is distributed evenly, resulting in a consistent character depth without deforming the part.

The Numberall Advantage: Model 301 Series

We offer two primary configurations of our roll marking technology to suit your specific production volume and integration requirements.

Model 301 | Manual Hand-Operated Press

• Best For: Low-to-medium volume production and prototype marking.
• Capabilities: Marks characters up to 5/32” in mild steel and 1/4” in aluminum.
• Versatility: Compatible with the Model 23 Type Holder and Model 70P Non-Automatic Numbering Heads.
• Compact Footprint: A rugged, bench-top design featuring oversized endplates for maximum clearance.

>> Learn About Model 301 Manual Roll Marking Press

Model 301A | Pneumatic Air-Operated Press

• Best For: High-speed, high-volume industrial production lines.
• Automation-Ready: Utilizes a heavy-duty air cylinder and control valve to reduce operator fatigue and increase throughput.
• Consistent Impact: Delivers the same precision as the manual model with the added power needed for hardened materials.
• Tooling Integration: Seamlessly integrates with Model 50P Automatic Numbering Heads for serialized marking.

>> Learn About Model 301A Pneumatic Roll Marking Press

---

Critical Applications Across Global Industries

Roll marking is the preferred method for permanent identification in sectors where traceability and compliance are non-negotiable.

Why Manufacturers Choose Roll Marking

Beyond simple aesthetics, roll marking offers mechanical advantages that other methods lack:

1. Reduced Stress: By marking one character at a time through rotation, the total displacement of metal is lower, reducing the risk of fracturing thin-walled parts like pipes or rings.
2. Versatility: From automotive VIN numbers to medical device tracking, a single machine can be reconfigured with different type holders to meet evolving project needs.
3. Durability: Unlike ink or labels, an indented mark remains legible through painting, plating, and years of heavy industrial wear.

Precision Customization for Industrial Roll Marking

At Numberall Stamp and Tool Co., we recognize that standard marking solutions don’t always align with unique manufacturing requirements. Whether you are dealing with unconventional geometries or delicate surfaces, our engineering team specializes in adapting roll marking technology to integrate seamlessly into your production line.

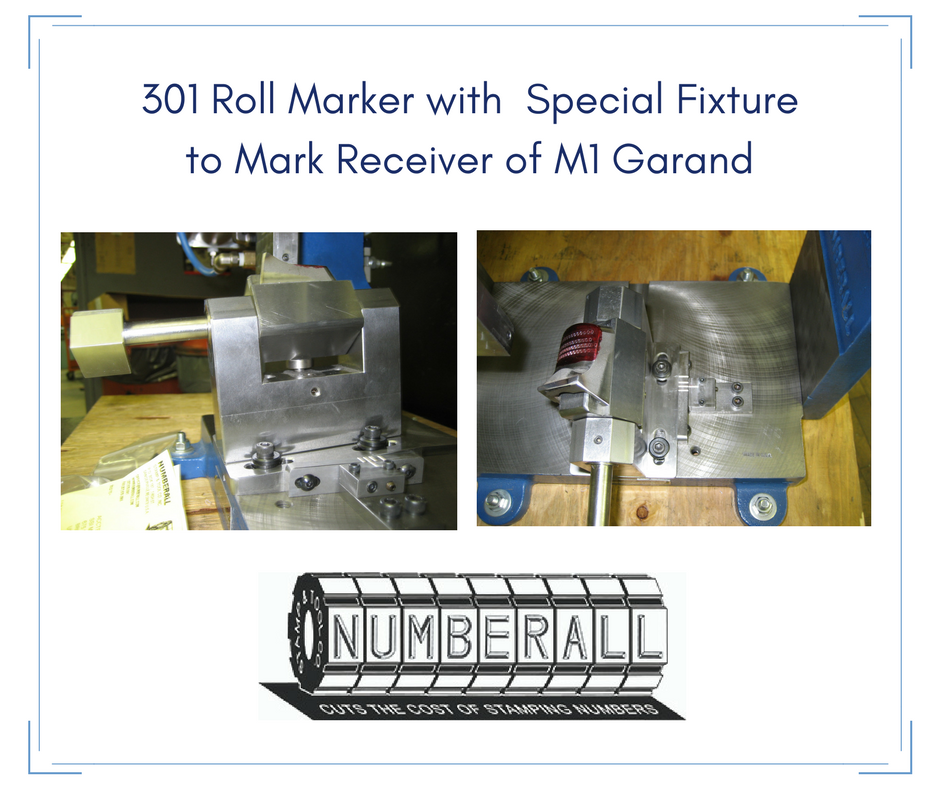

Engineered Fixturing for Complex Geometries

We provide more than just equipment; we provide the custom architecture needed to secure your parts and ensure a crisp, repeatable mark every time.

• Non-Marring Solutions: For high-finish items like coins and medallions, we design custom fixtures that stamp edges without compromising surface integrity.
• Hollow & Thin-Walled Parts: Our fixtures with interchangeable arbors provide internal support for rings and tubes, preventing deformation during the marking process.
• Stepped & Variable Diameters: We modify standard adjustable holding rollers to accommodate parts with multiple diameters, ensuring a level marking surface across the entire stroke.

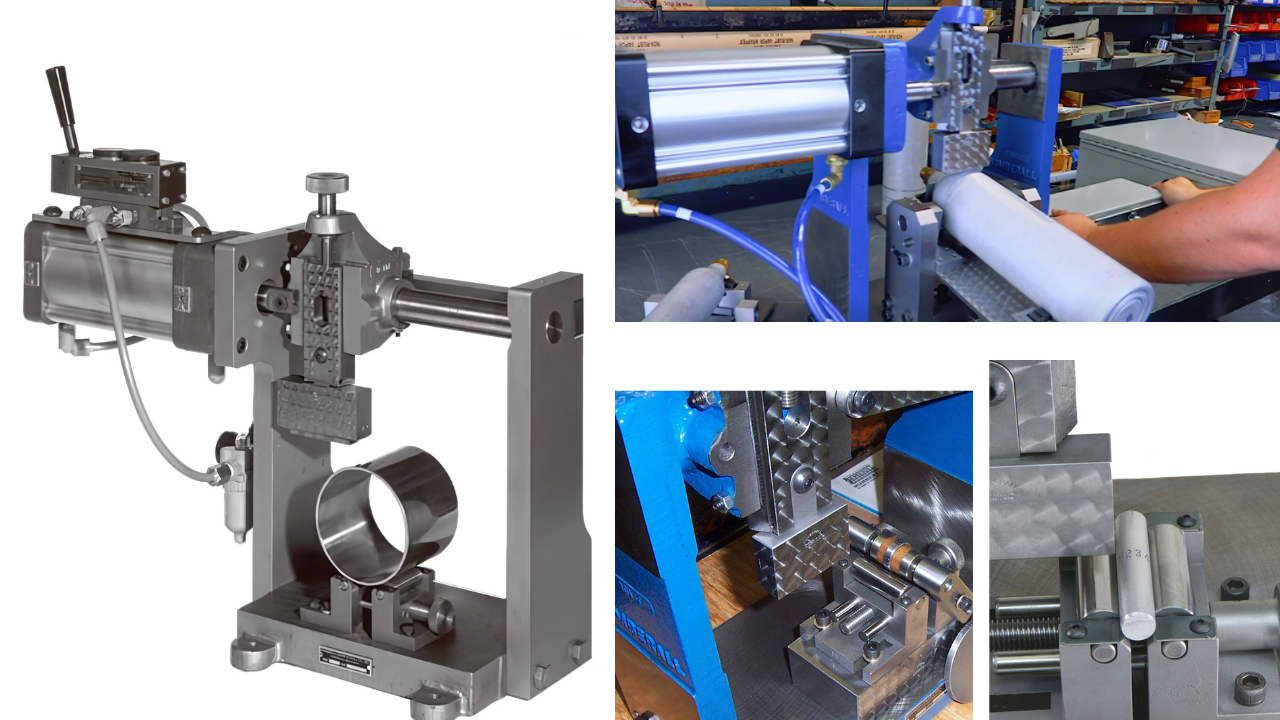

• Oversized Components: Extended endplate options allow our machines to handle larger-than-standard workpieces without sacrificing stability.

---

Case Study: Angled Marking for CO2 Cylinders

A primary example of our bespoke engineering is our specialized application for CO2 bottle marking for SodaStream Company. Because the marking surface on a cylinder neck is often tapered, a standard horizontal stroke is insufficient. We developed a custom holding fixture that secures the bottle at a precise angle, allowing for a deep, uniform indentation on a curved, sloped surface.

See the Solution in Action: Read our case study for SodaStream® CO2 Bottle Marking Application here.

Partner with the Marking Experts

Numberall’s roll marking machines offer the modularity and precision required for high-volume industrial environments. If your part presents a marking challenge, our team is ready to design the custom fixture to solve it.

Ready to optimize your marking process? Contact Numberall Stamp and Tool Co. today to discuss your custom application with our engineering team.
