Model 23 Custom Type Holders
We can customize any of our products, including our Model 23 Type Holder, a specialized tool designed for stamping repetitive sequences with steel type. Numberall’s custom Model 23 ensures quick and precise stamping of uniformly spaced and aligned character sequences. With the operator setting the type, virtually any sequence or code can be easily achieved, making it a versatile solution for various marking needs.
- Durable Construction
- Backed By Lifetime Guarantee
- Tailored to Fit Your Needs
| Order Information | Sample plate or blueprint required |
|---|---|
| Options | Hot Stamping Equipment |
Call For Quote
Quote Requirements
- Number of Characters
- Character Size
- Multiple Lines
- Extra Capacity/Partitions
Prefer to email a quote request?
Product Resources
Catalog Request
Product Manual (PDF)
Length of Impression Ruler (PDF)

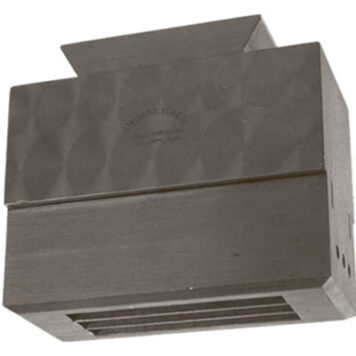

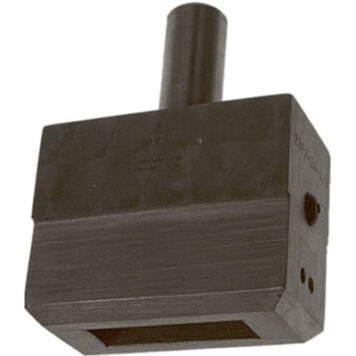

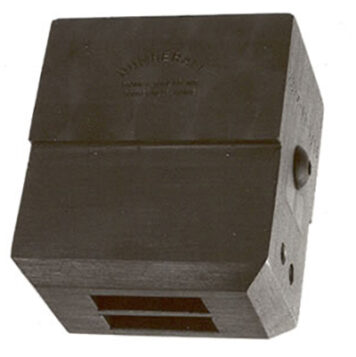

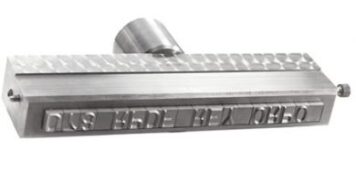

The Model 23 Type Holder can be modified in many ways to suit specific marking situations. The units shown below are just a few of the many variations which can be adapted to suit specific applications. Extended capacity and multiple lines, with or without partition walls, are just a couple of the available options. All multi-line type holders utilize set screws instead of type holding pins. If type holding pins are desired, a partition wall is required and must be stated when ordering. If not stated, partition walls will not be used. Please contact our sales engineers with your requirements for a consultation or see standard steel type.
Operation
A replaceable heat-treated steel anvil is used to support the base of the type characters. A type holding pin seats on a taper and prevents the notched type from falling out. During the marking operation, pressure bears on the anvil, rather than on the slot or pin.

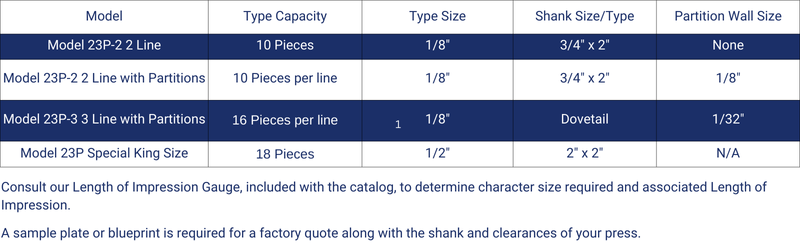

Custom Variation Specifications By Model
Construction & Parts
Numberall's one-piece hand shank frames are constructed using heat-treated high-grade alloy steel for increased durability. The hand shank is vinyl-coated to absorb shock during operation. The hardened steel anvil is replaceable for increased longevity of the tool.
Compatibility
The Model 23P’s 1" x 1-1/4" or 1” x 2" shank is recommended for use in most hand or power presses. For presses requiring a special round shank, please consult the Price List*. For other than round shanks, please request a factory quote. The Model 23P equipped with optional standard dovetail shank is recommended for use in our hand and power presses. By using the shanks outlined in the Price List*, the Model 23P can easily be adapted to our various platforms or stamp holders.
Options
The Model 23 is available in numerous sizes and capacities, which start at 4 pieces and then increase incrementally by 2 pieces up to 16 pieces, depending on character sizes. We strive to maintain over 110 different sizes and capacity holders. By choosing the proper capacity, the use of blank spacers to fill voids can be minimized, thus setups can be accomplished more quickly and easily. Refer to our Price List* for different sizes and capacities.
• Hot Stamping Equipment
• Extra Capacity**
• Multiple Lines**
*Our Price List can be obtained by ordering a catalog. Please consult our Length of Impression Gauge, included with the catalog, to determine character size required and associated Length of Impression.
**See Variations of Model 23 page for photos of modified Model 23 Type Holders.
