Model 23 Variations

Call for quote.

Description

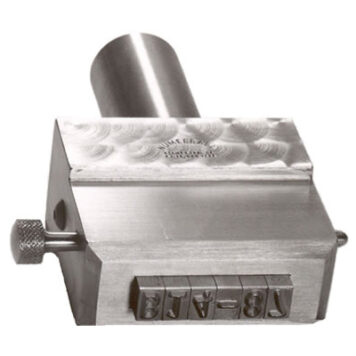

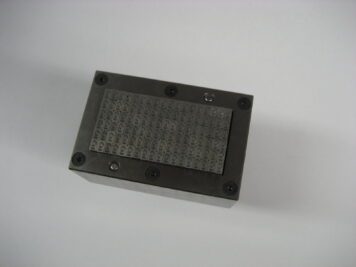

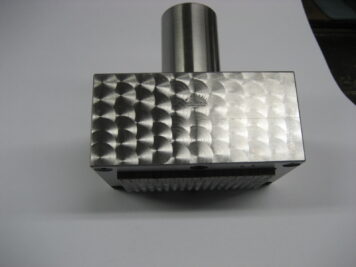

The Model 23 Type Holder can be modified in many ways to suit specific marking situations. The units shown below are just a few of the many variations which can be adapted to suit specific applications. Extended capacity and multiple lines, with or without partition walls, are just a couple of the available options. All multi-line type holders utilize set screws instead of type holding pins. If type holding pins are desired, a partition wall is required and must be stated when ordering. If not stated, partition walls will not be used. Please contact our sales engineers  with your requirements for a consultation or see standard steel type.

Model Type
Capacity
Type
Size
Shank
Size/Type
Partition
Wall Size
Model 23P-2
2 Line
10
Pieces
1/8″ 3/4″ x 2″ None See Thumbnail Above
Model 23P-2
2 Line with Partition
10
Pieces
per line
1/8″ 3/4″ x 2″ 1/8″ See Thumbnail Above
Model 23P-3
3 Line with Partitions
16
Pieces
per line
1/8″ Dovetail 1/32″ See Thumbnail Above
Model 23P Special King Size 18
Pieces
1/2″ 2″ x 2″ N/A See Thumbnail Above

* Our Price List can be obtained by ordering a catalog.

Consult our Length of Impression Gauge, included with the catalog, to determine the character size required and associated Length of Impression.
