Model 22

$160.00

Model 22 is an economical holder for all light-duty, handheld marking tasks. Numberall’s standard super quality steel type, up to a maximum of 5/32″ characters, may be used. It is recommended for stamping brass, aluminum, plastic, and steel. Numberall’s Super Quality Steel Type is purchased separately (contact Numberall direct) or in a 3A or 5A Font.

Operation

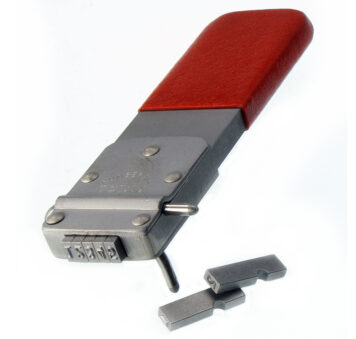

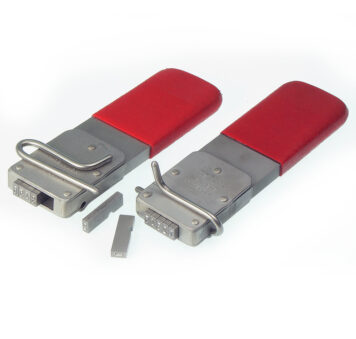

A removable pin holds the notched type securely in place. Because the type is notched, it cannot be inserted incorrectly. The pin is easily removed for quick character changes. Refer to the following chart for capacities. Blank spacers are required to fill any voids.

Construction & Parts

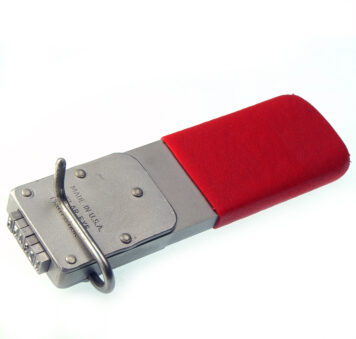

The Model 22 is made of heat-treated alloy steel to resist chipping. The shank is plastic coated to absorb shock when it is struck with a hammer during the marking operation.



Clear
SKU: N/A Category:

Description

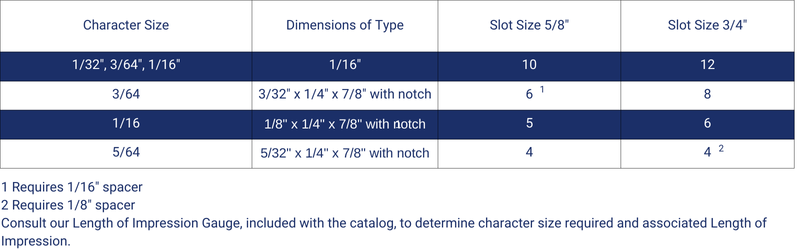

Character Size Specifications

Character Size Dimensions of Type Capacity
Slot Size 5/8″ Slot Size 3/4″
1/32″, 3/64″, 1/16″ 1/16″ 10 12
3/32″ 3/32″ x 1/4″ x 7/8″ with notch 61 8
1/8″ 1/8″ x 1/4″ x 7/8″ with notch 5 6
5/32″ 5/32″ x 1/4″ x 7/8″ with notch 4 42
1 Requires 1/16″ spacer
2 Requires 1/8″ spacer
Consult our Length of Impression Gauge, included with the catalog, to determine character size required and associated Length of Impression.

Additional information

Weight 4 lbs
Dimensions 6 x 6 x 4 in
Size

5/8, 3/4
