High-Stability Roll Marking: Achieving Precision for Complex Cylindrical Geometries

In today’s fast-paced manufacturing world, inconsistent markings on cylindrical or thin-walled parts lead to more than just aesthetic issues—they cause costly rework, compliance failures, and lost productivity. Imagine scrapping an entire batch of aerospace shafts due to illegible serial numbers or having gas cylinders fail DOT inspections because of surface deformation. High-stability roll marking fixtures are the essential safeguard against these risks, ensuring every mark is deep, uniform, and permanent.

At Numberall Stamp & Tool Co., a fourth-generation family-owned business manufacturing in the USA since 1930, we specialize in bespoke marking solutions. With over 95 years of expertise, we deliver the engineering required to tackle your toughest marking challenges.

---

The Engineering Challenge: Precision on Diverse Geometries

Standard “off-the-shelf” setups often fall short when dealing with irregular shapes or high-volume stress. Our custom roll marking fixtures provide the rock-solid stability required to prevent part-shift and deformation:

• Multi-Diameter & Non-Cylindrical Parts: For stepped components or hexagonal profiles, we craft rollers that maintain perfect tangency with the numbering head. This ensures consistent depth across the entire mark—a critical requirement for the automotive and defense sectors.

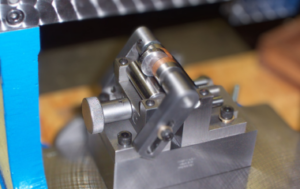

• Long-Axis & Oversized Components: To eliminate the “tail-whip” effect on extended pipes or shafts, our Model 301A utilizes oversize arm configurations to maintain a straight, repeatable marking path.
• Thin-Walled & Hollow Parts: Delicate tubes, rings, or CO2 bottles risk crushing under marking pressure. We utilize interchangeable internal arbors to provide necessary counter-pressure, achieving deep impressions without compromising structural integrity.

---

Versatility and Efficiency: Boosting Your OEE

In industrial environments, rigid setups are a liability. Numberall’s adjustable fixtures transform a single marking station into a multi-part powerhouse, significantly boosting your Overall Equipment Effectiveness (OEE):

1. Model 301 (Manual): Ideal for low-to-medium volume production and prototype marking where precision is paramount.
2. Model 301A (Pneumatic): Engineered for high-speed, high-volume industrial lines, reducing operator fatigue and increasing throughput.
3. Rapid Changeover: User-friendly depth control and modular rollers (as seen in our SodaStream Case Study) allow for high-speed production without sacrificing quality.

---

The Numberall Edge: Industrial-Grade Durability

What sets Numberall apart is a century of “shop floor” wisdom combined with modern tool steel.

• Heat-Treated Tool Steel Extreme wear resistance for 24/7 high-volume operations.
• Precision Bearings Delivers smooth rotation for “ghost-free,” high-clarity marks.
• Bespoke Contouring Rollers grooved to your part profile for maximum stability.
• Made in the USA Fast turnaround, domestic support, and 95+ years of expertise.

---

Selection Matrix: Finding the Right Roll Marking Solution

Choosing the right equipment depends on your material hardness, part diameter, and required throughput. Use the table below to determine which Numberall system aligns with your operational goals.

---

Asset Protection: The Critical Role of Maintenance

Precision is only as good as your maintenance routine. Material buildup—metal slivers, lubricants, or coatings—within character grooves can blur your marks and compromise your equipment’s lifespan.

The Value of Character Cleaning Picks

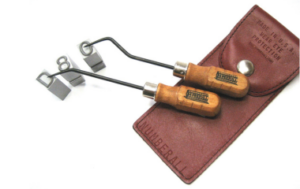

Our industrial-grade cleaning picks are forged from Chromium-Vanadium 8650 alloy steel. Unlike standard tools, these are designed to scrape away hardened debris without snapping, protecting your investment.

• Prevent Abrasive Wear: Removing buildup prevents the “rounding off” of steel type edges.
• Ensure Compliance: Clean characters ensure every mark remains legible for ISO and ATF traceability.

>> View Character Cleaning Picks

---

Real-World Impact: Proven Success

From VIN marking on automotive axles to serial numbering aviation components, our fixtures are battle-tested. In our recent custom CO2 bottle application, our specialized holding fixtures enabled precise angled marking on tapered bottle necks, allowing for rapid swaps between sizes with zero part deformation.

Elevate Your Marking Process Today

Don’t let unstable fixturing or poor maintenance create a bottleneck in your facility. With Numberall’s high-stability solutions, you achieve the precision, permanence, and performance your customers demand.

Ready to optimize your operations?

Contact our Engineering Team for a no-cost technical review of your part drawings and a custom quote. Let’s engineer the perfect solution together.
