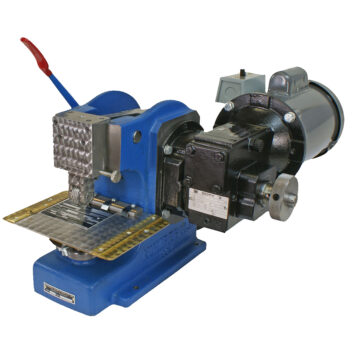

Model 137 1/4 HP Motorized Bench Top Press
The Model 137 is a versatile motorized press requiring 120V AC, making it usable anywhere with an outlet. Powered by a 1/4 HP electric motor and a reliable worm gear reducer, it features a proven clutch and cam mechanism. Numberall’s economical bench-top presses are compact, easily mountable on workbenches, and ideal for quickly marking name plates and other flat objects.
- Durable Construction
- Backed By Lifetime Guarantee
- Tailored to Fit Your Needs
| Weight | 110 lbs |
|---|---|
| Dimensions | 24 × 16 × 16 in |
| Optional Equipment | Tripping Attachment (for use with the Model 50P only) |
Call For Quote
Quote Requirements
- Part Material (Steel, Aluminum, etc)
- Part Thickness
- Number of Characters to Stamp
- Character Size (inches)
- Access to Air or Electricity
Prefer to email a quote request?
Product Resources
Catalog Request
Product Manual (PDF)
Length of Impression Ruler (PDF)
Operation
The Model 137 is a motorized press. It requires 120 volts AC electricity, so it can be used anywhere there is an outlet. It utilizes a 1/4 horsepower electric motor to drive a worm gear reducer. The clutch and cam mechanism is a design that has been proven effective through many years of service. Its operation is simple. The operator moves the operating lever down and the press cycles. With the standard Single Stroke Control, the press will only cycle once until the lever is released and actuated again. Motorized operation reduces operator's fatigue.
An acme screw and nut below the cast table regulate depth of stamping. A separate guiding rod helps align the table. By turning the acme nut you can raise or lower the table for depth adjustment.
The presses feature a short, safe 3/16” stroke, negating the need for external guarding. Numberall’s standard dovetail shank allows quick changing of marking devices. The same dovetail is used in all of our presses as well as the Model 116 Dovetail Adapter.
Construction & Parts
The Models 136, 136A and 137 use the same base casting. Numberall's presses have cast iron "C" frames for distortion-free stamping with a smooth, static non-impact marking force. No die cast parts are used. Many imported presses are made using round column construction with a spring release marking force, which may result in a harsh impact shock. The large quick-change dovetail ram evenly distributes the marking force across the marking device frame with minimal stress. Clearances and pressures are the same for each model.
Compatibility
A variety of marking devices can be installed in the presses, depending on part thickness and character capacity requirements.

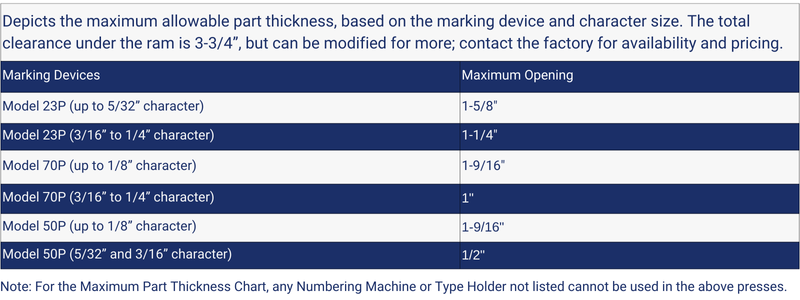

Maximum Part Thickness

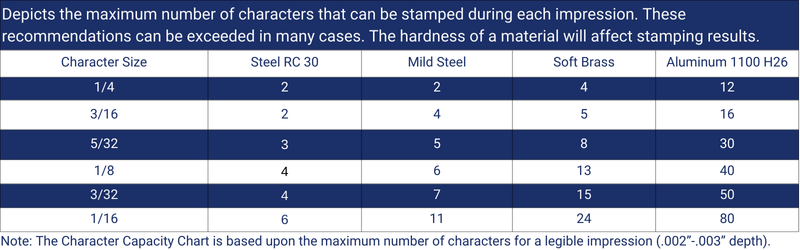

Character Capacity Chart
Options
- Tripping Attachment (for use with the Model 50P only)
- Adjustable Table (for in-out and left-right movement of table)
- Filter, Lubricator, Regulator, & Gauge (FLR&G) (for Model 131A only)
- Model 113 Strip Holder

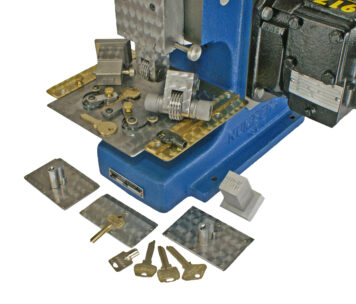

- Universal Key Nest
- Custom Nest

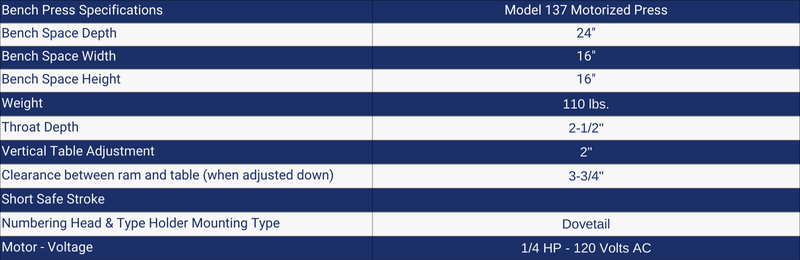

Product Specifications
Additional information
| Weight | 110 lbs |
|---|---|
| Dimensions | 24 × 16 × 16 in |
| Optional Equipment | Tripping Attachment (for use with the Model 50P only) |
