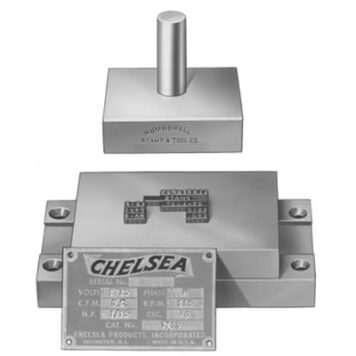

Model 24 Detail Chase & Punch
The Model 24 offers a fast solution for stamping multi-line data plates with removable steel type. Each unit is custom-designed for specific data plates, with machined recesses for precise character placement. The upside-down loading and stamping process allows for quick type changes by simply lifting and replacing the type. The recess design eliminates the need for screws or pins, and the notch on our standard steel type ensures correct character orientation.
- Durable Construction
- Backed By Lifetime Guarantee
- Tailored to Fit Your Needs
Call For Quote
Quote Requirements
- Number of Characters
- Character Size
- Multiple Lines
- Sample Plate or Blueprint
Prefer to email a quote request?
Product Resources
Catalog Request
Product Manual (PDF)
The Model 24 offers a quick approach to stamping multi-line data plates with removable pieces of steel type. Each unit is custom designed for the data plate. Recesses are machined for just the number of characters per line or section. Because the tag is loaded and stamped upside down, type changes can be done quickly and easily by just lifting the type out of the recess and replacing it with another. Because of the recess, the type is not retained by screws or pins. The notch on our standard steel type provides a reference point so that characters are not inserted upside down.
Compatibility
Some applications of our hand and power presses may be suitable. Please contact our sales engineers for assistance.
Options
To save time, logotypes can be used for sequences that are commonly used and changed. All lines and panels can be stamped in one single stamping operation.
Ordering Information
A sample plate or blueprint is required for a factory quote along with the shank and clearances of your press.
Additional information
Please fill out this form to request a quote and our sales engineers will review promptly and reply asap.
