Model 40B

$1,772.00

The Model 40B is ideal for stamping a variety of tags or flat parts made of aluminum, brass, or steel. Weighing only 40 pounds, it is portable enough to be used anywhere. It can be used to stamp dog tags, mailbox labels, and security badges.

Clear

Description

Operation
To operate, simply rotate the 42 character dial to the desired character. Pull the operating handle and release. The tag has now been stamped and the carriage table has moved to the next character. After reaching the end of a line, the carriage can be returned quickly to the starting point. Spacing is accomplished by a half stroke of the operating lever. An adjustable positive depth stop ensures consistent marking depth. No experience is necessary to operate this press. After a few minutes of practice, any operator can produce neat, even work.

Frame & Components
The Model 40B frame is constructed of a rigid, heavy-duty cast iron “C” type. All of the 40B’s components are machined, meaning that it has no die cast parts. The table moves up towards the dial using a heavy-duty rack and pinion drive. Numberall’s character dials are crafted from high grade tool steel and precision heat treated for severe usage and long life. Character dials are engraved for accuracy, strength, and alignment. This high quality engraving allows for a clear cut impression of uniform depth. Character dials have an adjustable tension block for operator convenience. The dial’s turning knob is plastic coated for comfort. Character dials can be specially engraved, as needed.

Optional Fixtures
Model 113 Strip Holder
Universal Key Nest
Custom Nest

Product Specifications
Various nests, strip holders, and slides can be custom manufactured for use with the Model 40B but specifications are for standard parts only. A wider table and rack can be furnished, upon request.
Different character size dials are interchangeable, but each size character requires a different size rack.

Product Specs

Specifications are for standard parts only. A wider table and rack can be furnished, upon request.

Note: Different character size dials are interchangeable, but each size character requires a different size rack.

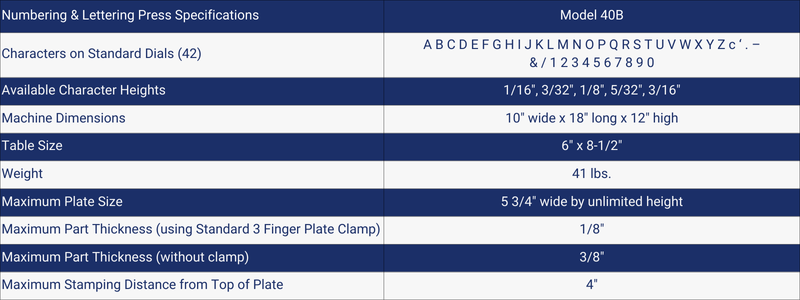

Characters on Standard Dials (42) A B C D E F G H I J K L M N O P Q R S T U V W X Y Z c ‘ . – & / 1 2 3 4 5 6 7 8 9 0
Available Character Heights 1/16″, 3/32″, 1/8″, 5/32″, 3/16″
Machine Dimensions 10″ wide x 18″ long x 12″ high
Table Size 6 x 8-1/2″
Weight 41 lbs.
Maximum Plate Size 5 3/4″ wide by unlimited height
Maximum Part Thickness (using Standard 3 Finger Plate Clamp) 1/8″
Maximum Part Thickness (without clamp) 3/8″
Maximum Stamping Distance from Top of Plate 4″

Available Spacing

Different size dials are interchangeable, but each size character requires a different spacing rack.

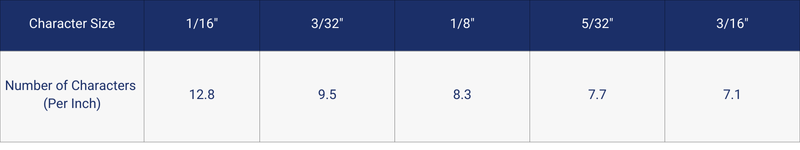

Character Size 1/16″ 3/32″ 1/8″ 5/32″ 3/16″
Number of Characters per Inch 12.8 9.5 8.3 7.7 7.1

Additional information

Weight 51 lbs
Dimensions 18 x 12 x 15 in
Size

1/16, 3/32, 1/8, 5/32, 3/16
