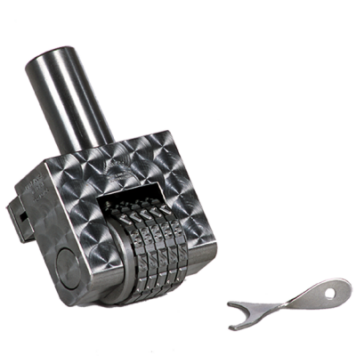

Model 73P Heavy Duty Shank Press Numbering Head
The Model 73P Heavy Duty Marker, similar to the Model 70, is designed for heavy-duty marking. Its large diameter wheels and frames allow for greater force without deflection. The Model 73P, also available with a one-piece Hand Shank, is perfect for marking large character sizes and multiple character wheels.
- Durable Construction
- Backed By Lifetime Guarantee
- Tailored to Fit Your Needs
Characters on Standard Wheels | Figures 1 to 0 – and blank (12 division) |
---|---|
Product Specifications | Large Diameter Wheels & Frame |
Call For Quote
Quote Requirements
- Number of Wheels
- Character Size
- Wheel Arrangement (left to right)
- Shank Requirements
Prefer to email a quote request?
Product Resources
Catalog Request
Product Manual (PDF)
Length of Impression Ruler (PDF)
Operation
Operation is similar to the Model 70. The same character sequence is retained after each impression is made, unless changed by the operator with the convenient spanner wrench.
Construction & Parts
The innovative design of the machine guarantees consistently uniform character alignment and impression depth. Multiple wheels are held precisely in position by retaining pawls and retaining pawl springs. A retaining pawl seats the index plate on each of the one piece wheels. This one piece construction assures more accurate stamping than those obtainable with two piece wheels. A pawl block further aids in maintaining wheel alignment. The wheels are meticulously engraved for accuracy, strength and alignment. Crafted from high grade tool steel, they are precision heat treated for severe usage and long life. Unlike the less rugged designs of other manufacturers, we optimize our frame designs to be compatible with the number of wheels desired by increasing the frame and leg widths.
Compatibility
The Model 73P can be adapted to virtually any press. Our standard shank is 1" diameter x 1-1/4" or 2" long. We offer a standard dovetail shank to the Model 116 Dovetail Adapter.
We can make custom round or rectangular shanks. We can omit the shank and provide tapped mounting holes or install a custom designed adapter. Or we can leave the top flat so the customer can drill and tap or mount an adapter. Please request a factory quote.
Options
• Hot Stamping Equipment
• All wheels indexed for direct sight reading
• Optional character styles and configurations
Characters on Standard Wheels
• Figures 1 to 0 - and blank (12 division)
• Letters A to M and blank (14 division)
• Letters N to Z and blank (14 division)
Note: Wheels can be engraved with any character, symbol, or style. Please contact us for pricing and availability.
Ordering Information
When ordering, please specify the following:
• Number of wheels
• Character size
• Wheel arrangement (from left to right)
• Shank requirements
Note: Consult our Price List for the number of wheels, character sizes and non-standard round or dovetail shanks available. Consult our Length of Impression Gauge to determine character size required and associated Length of Impression. Our Price List and Length of Impression Gauge may be obtained by requesting our catalog. By using shanks outlined in the Price List, the Model 73P can be easily adapted to the Model 47 Platform.
Additional information
Characters on Standard Wheels | Figures 1 to 0 – and blank (12 division) |
---|---|
Product Specifications | Large Diameter Wheels & Frame |
SIZES NOT RECOMMENED FOR MARKING STEEL DUE TO LENGTH OF WHEEL SHAFT, REFER TO MODEL 73 HEAVY DUTY.
Above prices are for machines with all figure wheels and standard sharp face Gothic Character. (Refer to Catalog p.2). For other styles of engraving, special characters on wheels, hand shanks and special Press Shanks see page 4 of Price List. Standard Press Shanks 1″ x 1-1/4″ or 1″ X 2″. No Extra Charge.
PLEASE SPECIFY STYLE OF SHANK DESIRED AND IF PRESS GIVE DIMENSIONS.
PRICES LISTED ARE F.O.B. SANGERVILLE, ME.
Return items subject to restocking charge. Prior to all returns obtain factory return authorization number.
The best heavy duty high alloy tool steel heat treated in controlled atmosphere furnaces is used in the manufacturing of all our numbering wheels and type at no extra cost.
