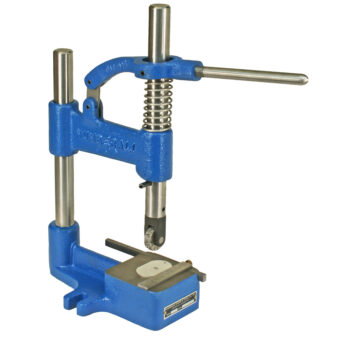

Model 47 Multi-Use Platform
The Model 47 is a platform that provides greater versatility than the Model 98. Because of the round column, the “sliding head” can be moved up or down for different size parts. The Model 47 can also be used for light punching, center punching, and other similar purposes.
- Durable construction
- Backed by lifetime guarantee
- Tailored to fit your needs
| Weight | 25 lbs |
|---|---|
| Dimensions | 10 × 10 × 15 in |
| Options | Model 110 Universal Name Plate Holder |
$778.00
Custom Options
- Special Shank for Marking Devices
- Slot Machined in “L” Gauge
- Price Shown is for Platform Only
Need a custom quote?
Product Resources
Catalog Request

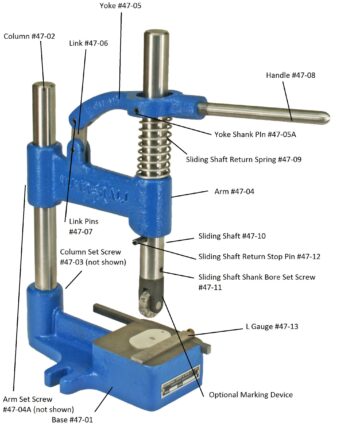

Product Manual (PDF)
Length of Impression Ruler (PDF)
Operation

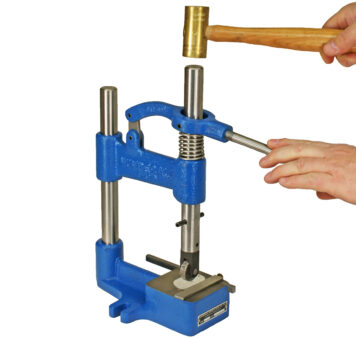

- The method of operation is similar to the Model 98. The operation handle is pulled down until the marking device is in contact with the part. The shank is then struck with a hammer. This method reduces misalignment and illegible stamping by holding the marking device square with the part.
Compatibility

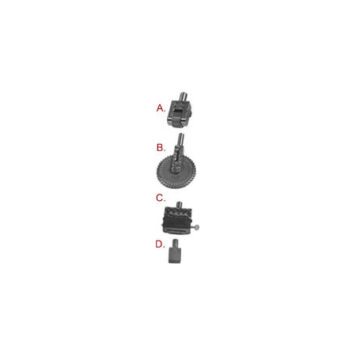

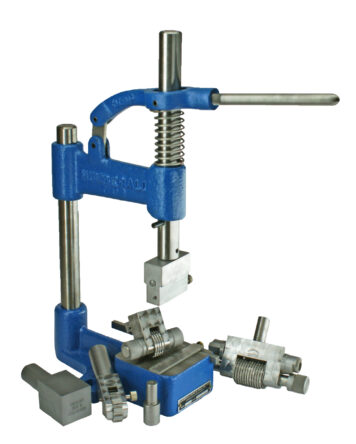

- The Model 47 is compatible with many different marking devices that can be quickly interchanged:
- It also can function as a Thread Tapping Device for Proper Alignment of the threading tool to the hole. Call for a quote on this version.
- The Model 47 Can also be used as an Arbor Press for small part removal or inserting.
- Models 70P, 80P, 83P, and 85P Numbering Heads
- 42 Character Dial and Shank
- Model 23P Type Holder
- Special Press and Trademark Dies
- Single-Wheel Rotary Stamps (shown in Model 47 photo)
- Single Letter or Figure Stamps (not shown)
Options
- Model 110 Universal Name Plate Holder
- Model 113 Strip Holder
- Universal Key Nest
- Custom Nest
- Slotted "L" Gauge for universal key positioning
- Extra-long column
Additional information
| Weight | 25 lbs |
|---|---|
| Dimensions | 10 × 10 × 15 in |
| Options | Model 110 Universal Name Plate Holder |
Please fill out this form to request a quote and our sales engineers will review promptly and reply asap.
